EduARM4 Board

EduARM4 Trainer Board – A Tiva launchpad base board for academia

  • The Tiva Launchpad can be mounted directly on the trainer.
  • All signals needed from Tiva’s headers to the trainer I/O female headers are connected.

EduARM4 And Tiva Board Connections

Below are the connections:

Tiva Signals Tiva Header Pin NUmber EduARM4 Board Connections
PA4 J2 – 8 7-Seg Digit-A
PA5 J1 – 8 7-Seg Digit-B
PA6 J1 – 9 7-Seg Digit-C, DS1307+ SCL, LCD – RS
PA7 J1 – 10 7-Seg Digit-D, DS1307+ SDA, LCD – E
PB0 J1 – 3 7-Seg-A, LCD – D0
PB1 J1 – 4 7-Seg-B, LCD – D1
PB2 J2 – 2 7-Seg-C, LCD – D2
PB3 J4 – 3 7-Seg-D, LCD – D3
PB4 J1 – 7 7-Seg-E, LCD – D4
PB5 J1 – 2 7-Seg-F, LCD – D5
PB6 J2 – 7 7-Seg-G, LCD – D6
PB7 J2 – 6 7-Seg-DP, LCD – D7
PC4 J4 – 4 4X4 KEYPAD COL-0
PC5 J4 – 5 4X4 kEYPAD COL-1
PC6 J4 – 6 4X4 KEYPAD COL-2
PC7 J4 – 7 4X4 KEYPAD COL-3
PD0 J3 – 3 LTC1661CN8(DAC) – SCK
PD3 J3 – 6 LTC1661CN8(DAC) – DIN
PE0 J2 – 3 4X4 KEYPAD ROW-0
PE1 J3 – 7 4X4 KEYPAD ROW-1
PE2 J3 – 8 4X4 KEYPAD ROW-2, LM35 – Vout
PE3 J3 – 9 4X4 KEYPAD ROW-3, ADC INPUT
PF2 J4 – 1 LTC1661CN (DAC) – CS/LD

EduARM4 Board Jumper Selection



EduARM4 Board Jumper Selection

EduARM4 Board Interface Experiments

  1. 4×4 Keypad Interface
  2. 7-Segment LED Interface
  3. 16×2 LCD Interface
  4. On-Chip ADC Programming
  5. SPI Protocol and DAC Interfacing
  6. I2C and RTC Interfacing
  7. Interfacing LM35 Sensor

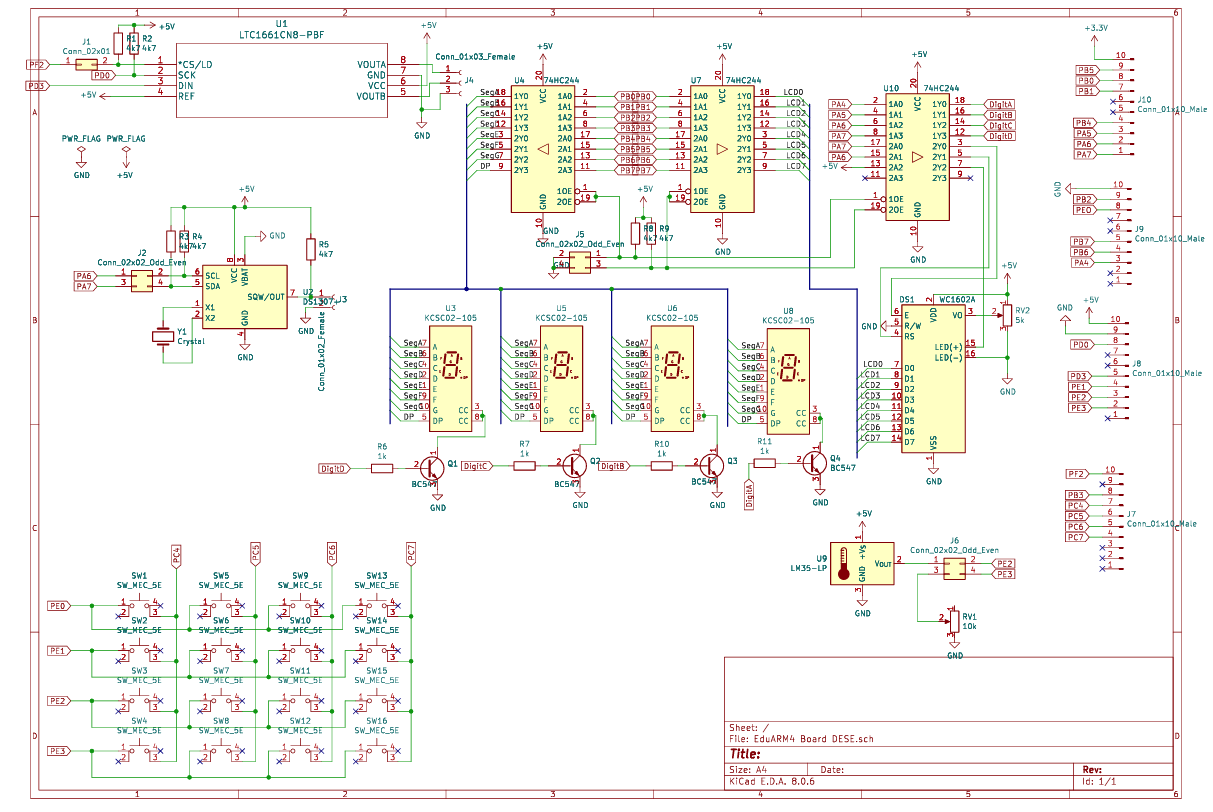

EduARM4 Board Schematic
